WA80 FIXED ATTENUATOR

Back to High Power (150 - 2000 Watts).

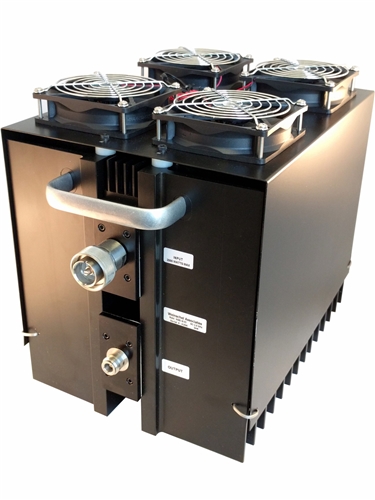

Fixed Attenuator, 2000.0W, 2.5GHz (usable to 3.0GHz), Type N or DIN 7/16.
WA80
  • WA80

click on thumbnail to zoom

Request a Quote

Attenuation: * dB
Connector 1: *
Connector 2: *
Requests


Datasheet

Designed to meet MIL-DTL-3933 environmental specifications. Forced Air Cooling

Dimensions & Weight: 20.5 kg; Length: 288 mm; Width: 234 mm; Height: 295 mm
Connection & Mounting: Type N or DIN 7/16 stainless steel M/F connectors per MIL-STD-348A, interface dimensions mate non-destructively with MIL-PRF-39012
Construction: Black aluminum alloy body with passivated stainless steel connectors
Calibration: Insertion Loss and VSWR performed across frequency range. Calibration test data available at additional cost.
Average Power Description: Maximum rated average power to +25 C ambient temperature, derated linearly to 100 W at +125 C
Average Power: 2000
Peak Power: 10 kW (5 microsecond PW, 10% Duty Cycle)
Power Sensitivity: <0.0001 dB/dB/W
Directionality: Unidirectional
Frequency Range: DC to 2.5 GHz (Usable to 3.0 GHz)
Attenuation Range: 20, 30, and 40 dB
Attenuation Accuracy: +/- 2.5 dB (30 and 40 dB), +3.5/-3.0 dB (20 dB)
Nominal Impedance: 50
Temperature Range: -55 C to +125 C
Temperature Coefficient: <0.0004 dB/dB/C
VSWR: 1.35 Maximum
