WA56 FIXED ATTENUATOR

Back to Low Power (up to 10 Watts).

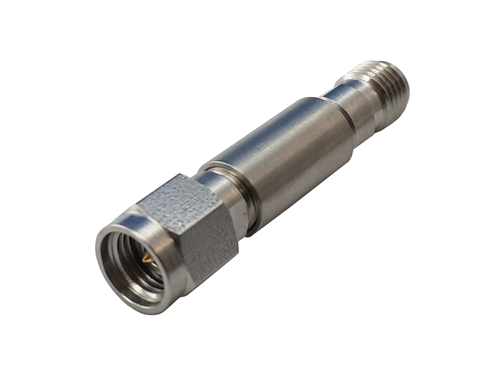

Fixed Attenuator, 2 W, 32 GHz, 3.5mm
WA56
  • WA56

click on thumbnail to zoom

Request a Quote

Attenuation: * dB
Connector 1: *
Connector 2: *
Requests


Datasheet

Designed to meet MIL-DTL-3933 environmental specifications.



Dimensions & Weight: Length: 36.00 mm; Diameter: 7.1 mm; Weight: .008 kg
Connection & Mounting: 3.5mm stainless steel M/F connectors per MIL-STD-348A, interface dimensions mate non-destructively with MIL-PRF-39012 connectors.
Construction: Passivated stainless steel body and connectors. Gold plated beryllium copper contacts. RoHs Compliant.
Calibration: Insertion Loss and VSWR performed across frequency range. Calibration test data available at additional cost.
Average Power Description: Maximum rated average power to 25°C ambient temperature, de-rated linearly to 0.1 W at 100°C.
Average Power: 2
Peak Power: 200 W peak (5 μsec pulse width, 0.5% duty cycle)
Power Coefficient: <0.005 dB/dB/W
Directionality: Bidirectional
Frequency Range: dc to 32.0
Attenuation Range: 0 to 30
Attenuation Accuracy:
Attenuation Range3, 6 dB1, 2, 10 dB11 to 30 dB
Attenuation Accuracy (+/- dB, dc to 26.5 GHz)0.50.60.75
Attenuation Accuracy (+/- dB, 26.5 to 32 GHz)0.80.81.5
Nominal Impedance: 50
Temperature Range: -55°C to +100°C
Temperature Coefficient: <0.0004 dB/dB/C
VSWR:
Frequency Range (GHz)dc to 26.526.5 to 32.0
VSWR (max)1.251.35
