WA50 FIXED ATTENUATOR

Back to Low Power (up to 10 Watts).

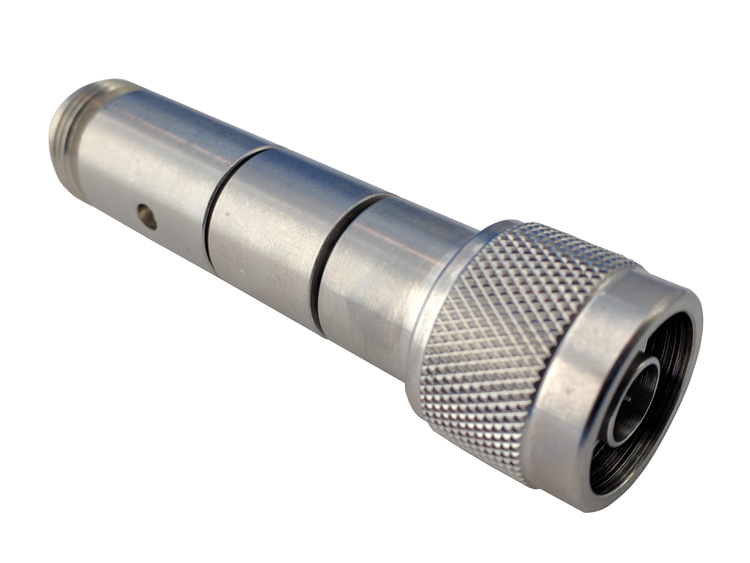

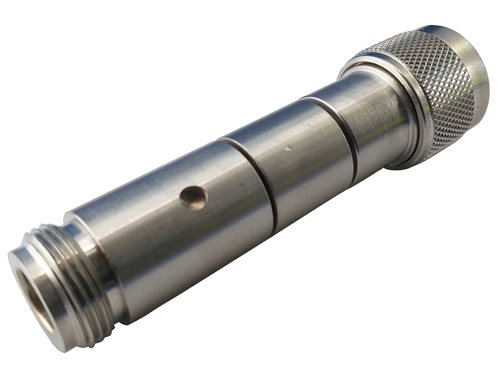

Fixed Attenuator, 2.0W, 3.0GHz, Type N.
WA50
  • WA50

click on thumbnail to zoom

Request a Quote

Attenuation: * dB
Connector 1: *
Connector 2: *
Requests


Datasheet

Designed to meet with MIL-DTL-3933 environmental specifications.



Weight: 0.10 kg
Dimensions & Weight:
Attenuation1 to 30 dB31 to 60 dB
Length (mm)74.484.6
Connection & Mounting: Type N stainless steel male and female connectors to mate non-destructively with connectors per MIL-PRF-39012 and MIL-STD-348A.
Construction: Stainless steel barrels with passivated stainless steel connectors. RoHs Compliant.
Calibration: Insertion Loss and VSWR performed across frequency range. Calibration test data available at additional cost.
Average Power Description: Maximum rated average power to 25°C ambient temperature, derated linearly to 0 W at 125°C
Average Power: 2
Peak Power: 1 kW peak (5 μsec pulse width, 0.1% duty cycle)
Directionality: Bidirectional
Frequency Range: dc to 3.0
Attenuation Range: 1 to 50
Attenuation Accuracy:
Attenuation Range0 to 12 dB13 to 20 dB21 to 40 dB41 to 60 dB
Attenuation Accuracy (+/- dB)0.500.701.01.5
Nominal Impedance: 50
Temperature Range: -30° to +70°C
VSWR:
Frequency Range (GHz)DC to 1.01.0 to 3.0
VSWR (max)1.151.20
