WA46 FIXED ATTENUATOR

Back to Medium Power (20 - 100 Watts).

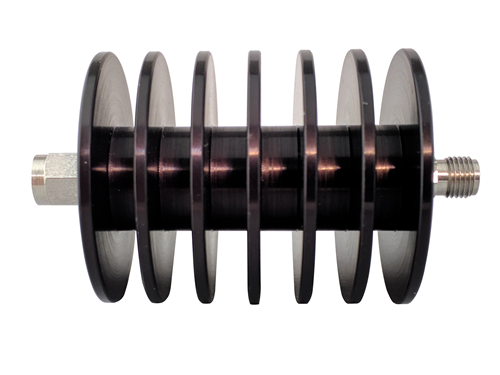

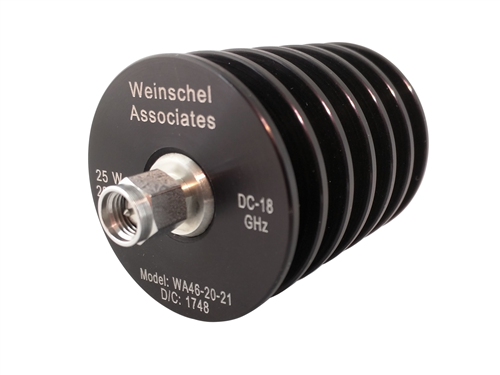

Fixed Attenuator, 25.0W, 18.0 GHz, N Type or SMA.
WA46
  • WA46

click on thumbnail to zoom

Request a Quote

Attenuation: * dB
Connector 1: *
Connector 2: *
Available Options:
Requests


Datasheet

Designed to comply with MIL-DTL-3933. High power input is unidirectional: Input connector optional; Female if not specified. Low inter-modulation option available on 10, 20, 30, and 40 dB.

Dimensions & Weight: 0.11 kg; Length: 46.00 mm
Connection & Mounting: Type N or SMA connectors per MIL-STD-348A, interface dimensions mate non-destructively with MIL-PRF-39012.
Construction: Black finned aluminum alloy body with passivated stainless steel connector. Gold plated BeCu female contacts. Gold plated BeCu or passivated stainless steel male contacts. RoHs Compliant.
Calibration: Insertion Loss and VSWR performed across frequency range. Calibration test data available at additional cost.
Options: Low Intermodulation
Average Power Description: Maximum rated average power to 25°C ambient temperature, de-rated linearly to 2.5 W at 125°C.
Average Power: 25
Peak Power: 1 kW peak (5 μsec pulse width, 1.25% duty cycle)
Power Coefficient: <0.0006 dB/dB/W
Directionality: Bidirectional
Frequency Range: dc to 18.0
Attenuation Range: 3 to 40
Attenuation Accuracy:
Attenuation Range3 to 10 dB11 to 20 dB21 to 40 dB
Attenuation Accuracy (+/- dB)0.500.751.0
Nominal Impedance: 50
Temperature Range: -55°C to +125°C
Temperature Coefficient: <0.0004 dB/dB/C
VSWR:
Frequency Range (GHz)dc to 8.08.0 to 12.412.4 to 18.0
VSWR (max)1.201.251.35
