WA44 FIXED ATTENUATOR

Back to Low Power (up to 10 Watts).

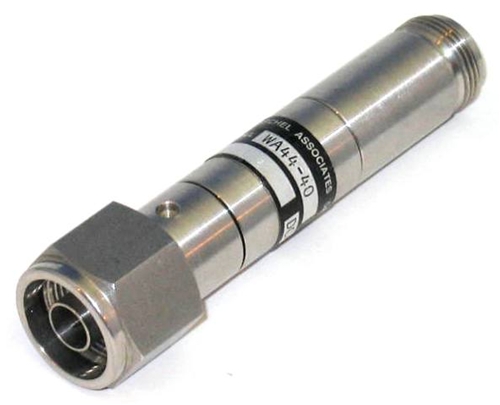

Fixed Attenuator, 5.0W, 18.0 GHz, N Type.
WA44

Request a Quote

Attenuation: * dB
Connector 1: *
Connector 2: *
Requests


Datasheet

Designed to meet with MIL-DTL-3933 environmental specifications.



Weight: 0.10 kg
Dimensions & Weight:
Attenuation1 to 30 dB31 to 60 dB
Length (mm)74.484.6
Connection & Mounting: Precision N-Type stainless steel connectors with hex coupling nut per MIL-STD-348A, Interface dimensions mate non-destructively with MIL-PRF-39012. Unit may be mounted in any position.
Construction: Stainless steel barrels with passivated stainless steel connectors. RoHs Compliant.
Calibration: Insertion Loss and VSWR performed across frequency range. Calibration test data available at additional cost.
Average Power Description: Maximum rated average power to 25°C ambient temperature, de-rated linearly to 0 W at 125°C.
Average Power: 5
Peak Power: 1 kW peak (5 μsec pulse width, 0.25% duty cycle)
Power Coefficient: <0.005 dB/dB/W
Directionality: Bidirectional
Frequency Range: dc to 18.0
Attenuation Range: 1 to 60
Attenuation Accuracy:
Attenuation Range0 to 9 dB10 to 20 dB21 to 40 dB41 to 60 dB
Attenuation Accuracy (+/- dB)0.300.501.01.5
Nominal Impedance: 50
Temperature Range: -55°C to +125°C
Temperature Coefficient: <0.0004 dB/dB/C
VSWR:
Frequency Range (GHz)dc to 4.04.0 to 12.412.4 to 18.0
VSWR (max)1.151.201.25
