WA1514/12 RF ADAPTER

Back to In-Series.

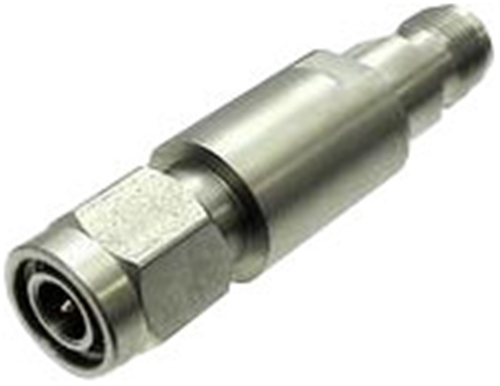

RF Adapter, TNC In-Series, 12.4 GHz

click on thumbnail to zoom

Request a Quote

Connector 1: *	*
Connector 2: *	*
Requests	Please describe any special requests

Model Features & Specs
Related Products

Datasheet

Stainless steel bodies, gold plated beryllium contacts.

Connection & Mounting:	TNC stainless steel M/F connectors per MIL-STD-348A, interface dimensions mate non-destructively with MIL-PRF-39012. Designed to meet MIL-DTL-3933 environmental specification.
Construction:	Stainless steel bodies, gold plated beryllium copper contacts. RoHs Compliant
Frequency Range:	dc to 12.4
Nominal Impedance:	50
Temperature Range:	-55°C to +125°C
VSWR:	1.15
Insertion Loss:	0.25
