WA1454 TERMINATION

Back to Low Power (up to 10 Watts).

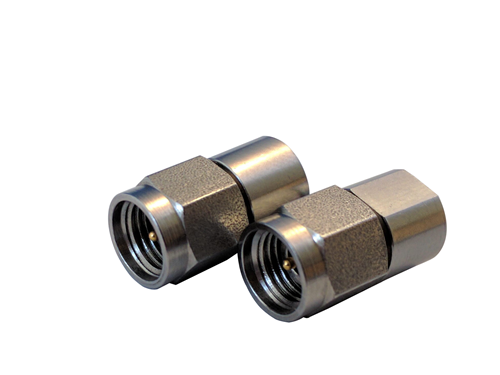

Termination, 2W, 40.0GHz, 2.92mm.

click on thumbnail to zoom

Request a Quote

Connector: *	*
Requests	Please describe any special requests

Model Features & Specs
Related Products

Datasheet

Designed to meet MIL-DTL-39030 environmental specifications.

Dimensions & Weight:

Length: 25.00 mm; Diameter: 6.5 mm; Weight: .005 kg

Connection & Mounting:

Precision 2.92 mm stainless steel connector per MIL-STD-348A, interface dimensions mate nondestructively with MIL-PRF-39012. Designed to meet MIL-DTL-39030 environmental specification. Compact, rugged design.

Construction:

Passivated stainless steel body and connectors. Stainless steel or gold-plated beryllium copper contacts. RoHs Compliant

Calibration:

VSWR performed across frequency range. Calibration test data available at additional cost.

Average Power Description:

Maximum rated average power to 25°C ambient temperature, de-rated linearly to 0.1 W at 125°C.

Average Power:

Peak Power:

500 W peak (5 μsec pulse width, 0.20% duty cycle)

Frequency Range:

dc to 40.0

Nominal Impedance:

Temperature Range:

-55°C to +125°C

VSWR:

Frequency Range (GHz)	dc to 26.5	26.5 to 40.0
VSWR	1.20	1.30
